Solenoid

• Amplitude … 12 to 24 VDC
• Pulse Width window… 100 to 200 milliseconds.
• Pulse Duty Cycle… 10%max.
• Max. Input Voltage… 26.4VDC
• Current consumption… 1A@12VDC
• Activation Current… 0.9 Amp. maximum

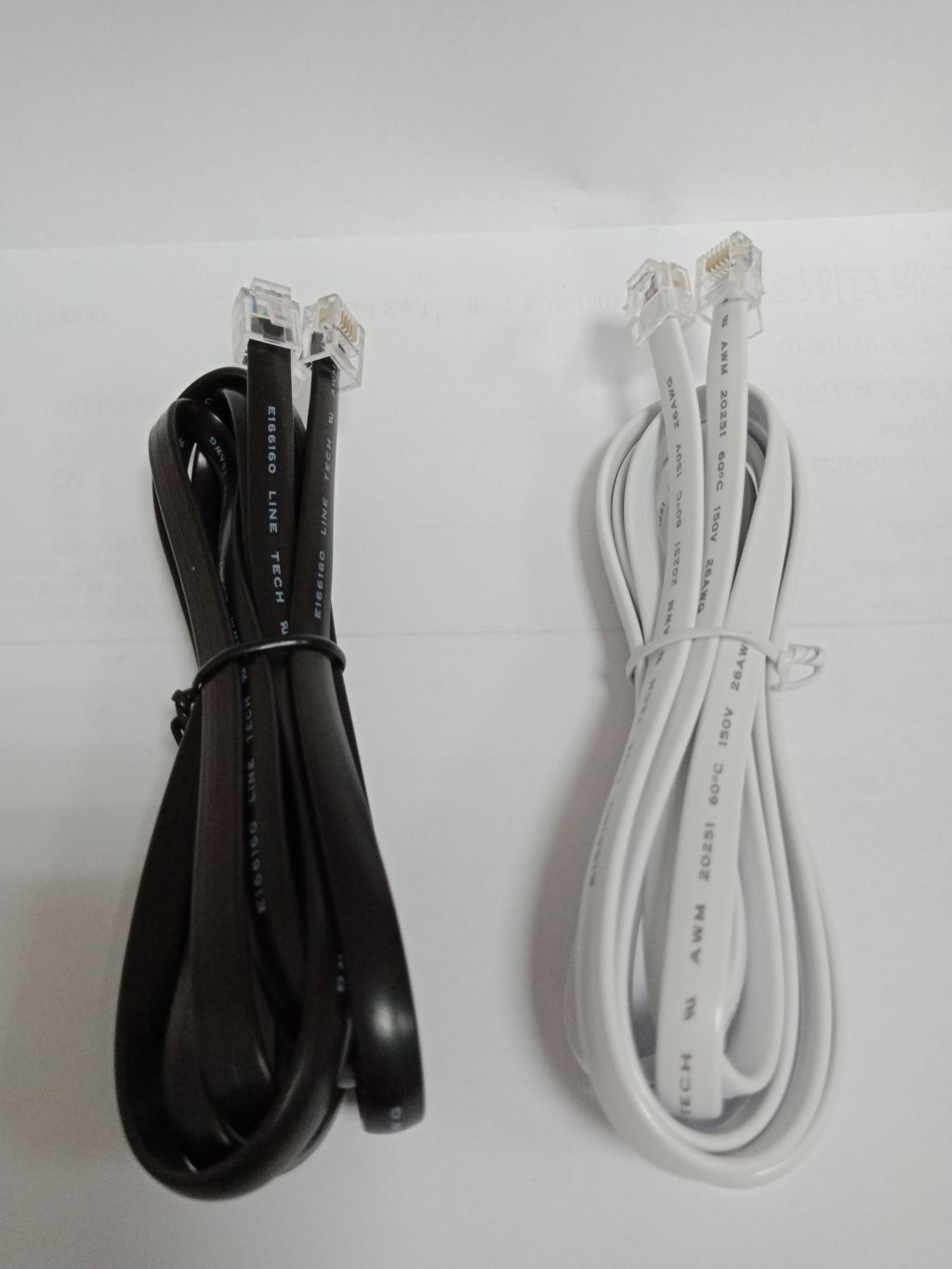

• Phone jack cable... 150mm

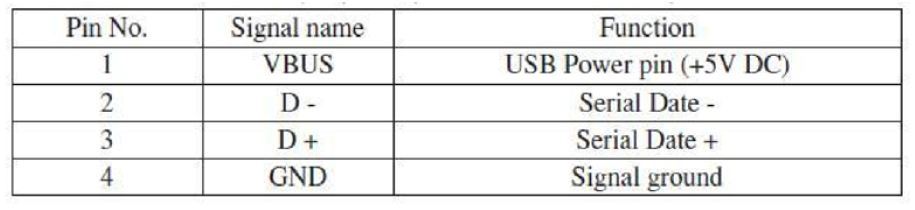

USB Interface

• USB Virtual COM interface USB 1.1 & 2.0 compatible (USB 3.0 Reverse compatible, software driver provided)
• Power over USB (No external power need)
• Standby Current consumption - 20mA
• Charging time: less than 1.5 seconds
• Baud rates: 150, 300, 600, 1200, 2400, 4800, 9600
• Date bits: 7 or 8
• Protocol: No handshake
• Baud rate: 300 ~ 38,400
• Date bits: 7 or 8
• usb cable: 150mm
